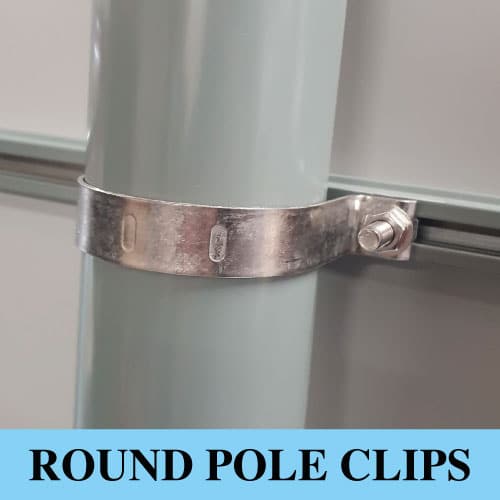

Round Pole Clip Sets

from £3.50 ex. VAT

Fast, simple sign installations are achieved using these standard post clips. Post clips are suitable for our range of Back Rails, Both medium and small channel.
These need to be ordered using the link below
Back Rails for Aluminium Faced Signs

Clips will not work without the back rails.

The 76mm – 3 inch post clips are by far the most popular. They are used with a very common 76mm post, M8 x 38mm Square Head Bolts, Nuts and Washers are included with each clip

Unsure on what size you need – Purchase our universal clip sets that fit poles from 45mm to 217mm

How Many Clips Do You Need?

  • Fitting your Sign with 1 Pole – 2 Clips
  • Fitting your Sign with 2 Poles – 4 Clips

Choose your product options

Quantity
Total Price

Awaiting Selection

per unit

Awaiting Selection

Start designing

FAQs

FAQ - Fitting with Backrails (4)

The video below shows how to do the job using Postmix concrete. This is available from your local Builders Merchant.

In the video, a Post Hole Digger is being used. A hole dug by this piece of equipment creates a hole that is about 250mm wide without disturbing the soil around so needs less concrete & when set is much smaller & more secure than a spade-dug hole.

Click to watch video

When ordering your poles allow for a minimum of 500mm in the ground (Order your poles here)

Fitting to extra-large poles requires extra-large clips. The solution is to use very large jubilee clips that can be tightened to fit the pole. The jubilee clip goes through slots on a fixing that slides into the back rails and then around the lamp-post. Tighten the jubilee clip with a screwdriver. 2 Rail Sliders & 2 jubilee clips are needed per sign. Order at the checkout.

When you order your sign with the back rails option we rivet aluminium back rails to the rear of your sign with one rail at the top & one rail at the bottom. A clip is inserted into the rail & twisted to lock in position. The clip then goes around the pole & the other end of the clip is fixed with a slide-in bolt to the back rail.

If you are replacing an existing sign then you may already have the clips & pole so when you receive your sign with back rails in position you will be ready to fix

If you need new clips CHOOSE HERE. For 1 pole you need 2 clips. For a sign attached to 2 poles, you need 4 clips.

If you need to erect a new pole then GO TO OUR NEW POLE SECTION

Please click live chat & ask us any question you like. We will answer your question on live chat & if the answer to your question is likely to be of interest to others then we will add it to our FAQ list & thank you.
